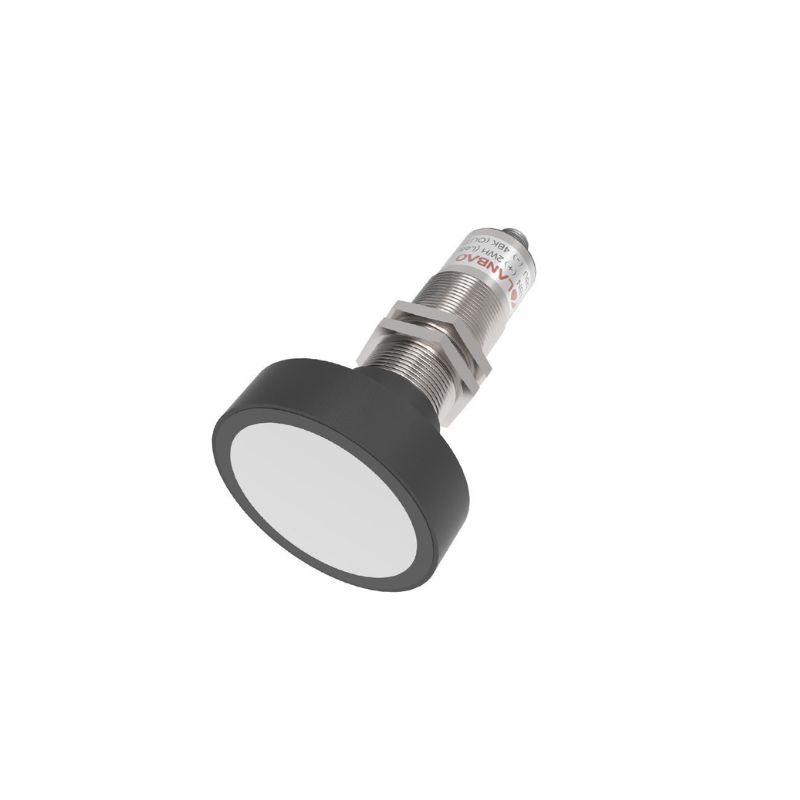

UR30-CM6 series is a long-range reflective ultrasonic sensor with M30 threaded housing, supporting multiple output types including TTL, NPN, PNP, analog voltage/current, and RS485. It features teach-in distance setting and built-in temperature compensation for stable performance.
Key Technical Features
- Sensing Range: 350–6000 mm
- Blind Zone: 0–350 mm
- Resolution: 4 mm
- Temperature Drift: ≤ 2% FS (with compensation)
- Output Indication: Red / Yellow / Blue / Green LED indicators
- Supply Voltage: 5–30 VDC
- Operating Current: ≤ 200 mA
- No-Load Current: ≤ 25 mA
- Protection: Reverse polarity, short-circuit, overload, over-voltage
- Operating Temperature: –25°C to +70°C
- Connection: M12, 4-pin
