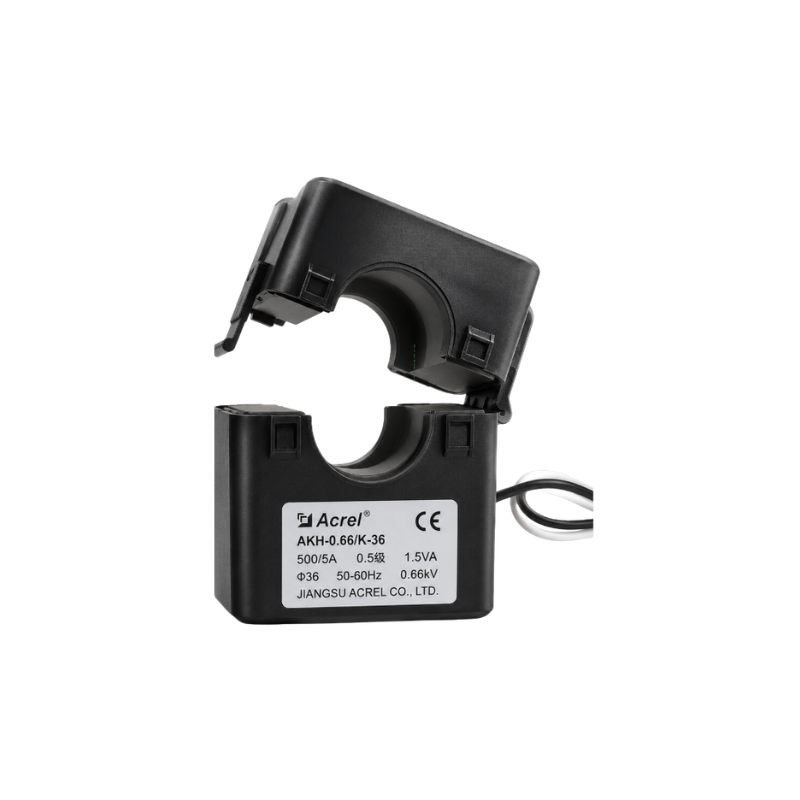

Acrel AKH-0.66/K-36 Split Core Current Transformer is designed for accurate current measurement in energy monitoring and power management applications. Its split-core construction allows fast installation without disconnecting existing cables, making it ideal for retrofit projects and electrical upgrades.
Featuring a 500/5A current ratio, 36mm aperture, and CE certification, the AKH-0.66/K-36 delivers reliable performance for industrial, commercial, and energy metering systems.
Features & Specifications
- Model: AKH-0.66/K-36
- Type: Split Core Current Transformer (CT)
- Current Ratio: 500/5A
- Aperture Size: 36mm
- Accuracy Class: 0.5
- Rated Burden: 1.5VA
- Rated Voltage: 0.66kV AC
- Rated Frequency: 50/60Hz
- Number of Turns: 1
- Split-core design for easy installation
- No need to disconnect existing cables
- Material: PC + ABS
- Certificate: CE
- Coil Structure: Toroidal
- Application: Energy Monitoring & Power Measurement
- Input Current: 500A
- Warranty: 2 Years
- Compact and lightweight design
