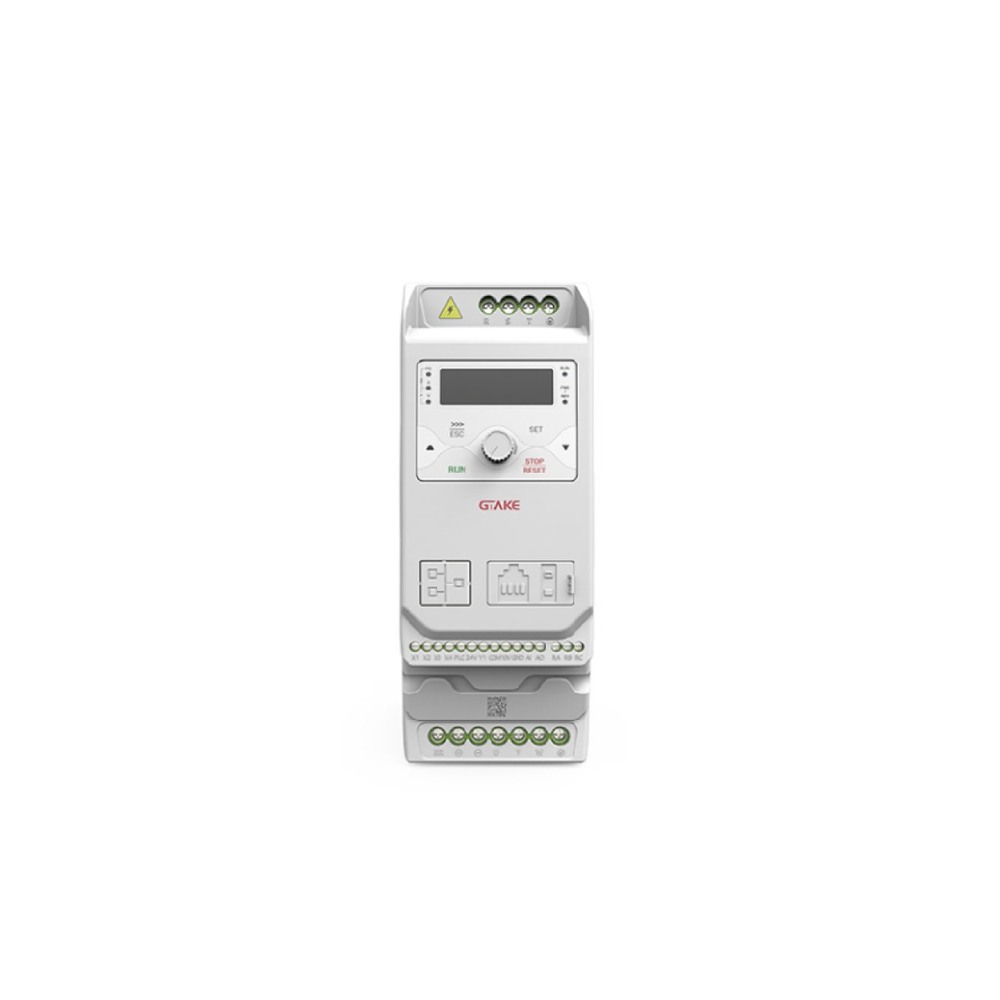

GK610-2S0.4B Inverter – 0.4kW, Single Phase 220V

GK610-2S0.4B is a compact and reliable variable frequency drive designed for precise speed control of 0.4kW AC motors. Operating on a single-phase 220V power supply, it offers sensorless vector control, built-in braking capability, and RS485 Modbus communication, making it suitable for pumps, fans, conveyors, packaging machines, and other industrial automation applications.

Key Features

• Rated Power: 0.4kW (0.5HP)
• Input Voltage: Single Phase 220V AC, 50/60Hz
• Output Frequency: 0–600Hz
• Control Modes: V/F Control and Sensorless Vector Control (SVC)
• High Starting Torque: Up to 180% torque at low frequency
• Built-in PID Control for process automation
• Supports Simple PLC Function and multi-speed operation
• Online and Offline Auto-Tuning
• Built-in RS485 Modbus RTU Communication
• Fast acceleration and deceleration control
• Mechanical brake control and field weakening control
• Multiple protection functions:
  • Overload
  • Overcurrent
  • Overvoltage
  • Undervoltage
  • Overheating
  • Short Circuit Protection
