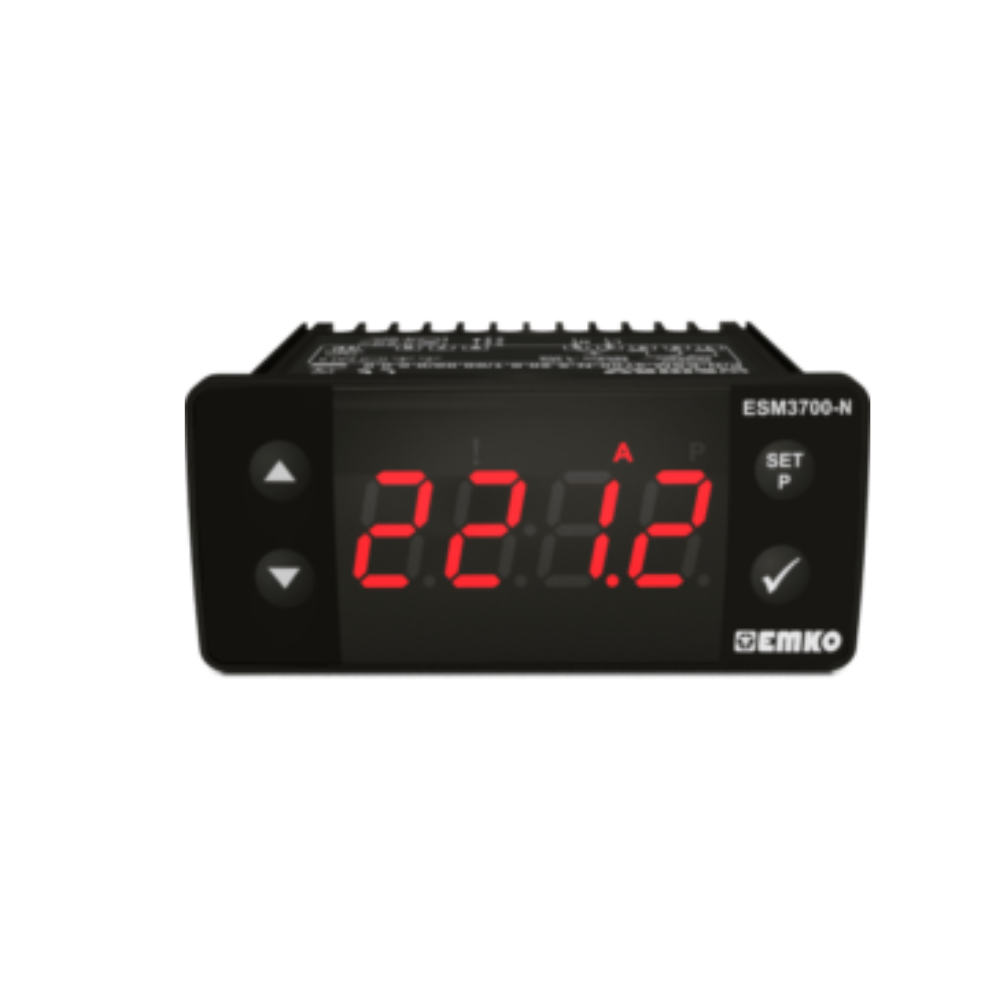

Process Indicator 24V EM-3700.2

EMKO EM-3700.2 Process Indicator is a compact digital panel-mounted indicator designed for accurate monitoring and display of industrial process values. Featuring a 4-digit LED display, configurable input options, adjustable scaling, and alarm outputs, it is ideal for measuring temperature, pressure, humidity, flow, level, and other process parameters in industrial automation systems. Its 24V power supply compatibility and front-panel programming make installation and operation simple and reliable.  Ideal for Industrial Process Monitoring, Temperature & Pressure Measurement, Flow and Level Monitoring, Automation Panels, and HVAC and Building Automation

Key Features

• 4-digit bright LED display
• 24V AC/DC power supply option
• Universal process input support
• Configurable input ranges:
  • 0–10 VDC
  • 0–1 VDC
  • 0–60 mVDC
  • 0–20 mADC
  • 4–20 mADC
• Adjustable decimal point and display scaling
• Measurement range from -1999 to 9999
• Maximum and minimum value memory
• Adjustable analog input filtering
• Front panel parameter configuration
• Alarm output options (Relay or SSR Driver)
• Password protection for programming mode
• Compact 77 × 35 mm DIN panel size
• IP65 front protection for industrial environments
