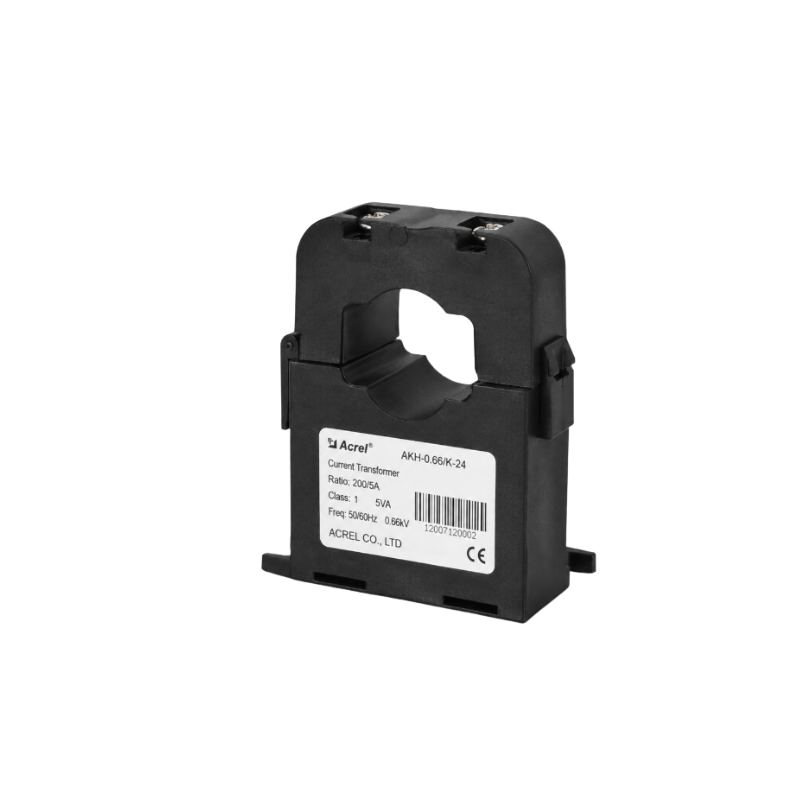

Current Transformer 200/5 AKH-0.66/KK-24 200/5

AKH-0.66 K Split Core Current Transformer is designed for accurate current measurement in power monitoring, metering, and energy management systems. Its split-core design allows quick installation without disconnecting existing cables, making it ideal for retrofit and upgrade projects.

Available with multiple output options including 1A, 5A, mA, and mV, the AKH-0.66 K series provides reliable performance for industrial, commercial, and smart energy applications. It is UL certified and built for safe, long-term operation.

Features & Specifications

• Split-core design for non-invasive installation
• UL certified
• Suitable for metering and monitoring applications
• Primary current range: 5A to 1000A
• Secondary outputs: 5A, 1A, 333mV, mA
• Accuracy class: 0.5 / 1.0
• Aperture sizes available: Φ10, Φ16, Φ24, Φ36, Φ50 mm
• Rated voltage: 0.69kV AC
• Frequency: 50/60Hz
• Operating temperature: -30°C to +55°C
• Silicon steel core for stable performance
• DIN panel and retrofit installation compatible
• Suitable for energy meters, power analyzers, and monitoring systems
