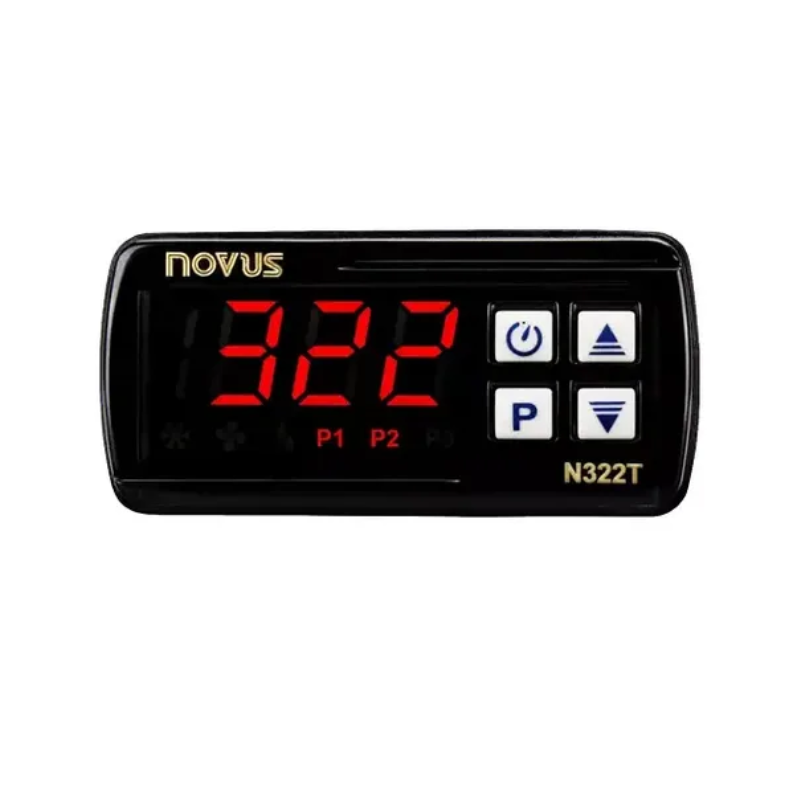

Temperature Controller With Timer N322T

N322T Temperature Controller with Timer is a compact and intelligent solution designed for precise heating and cooling control with integrated timing functions. Built for industrial and commercial applications, it ensures stable temperature regulation with added automation features like delay start, cyclic relay control, and manual timer activation.

Ideal for refrigeration systems, heating processes, and automation panels, the N322T improves efficiency, safety, and process control reliability.

Key Features

• Heating and cooling control with built-in timer function
• Power-on delay function for process protection
• Minimum ON/OFF time programming for system stability
• Second relay with programmable cyclic timer activation
• Manual timer control key for easy operation
• High accuracy temperature measurement
• Compact panel-mounted design

Technical Specifications

• Sensor Inputs:
  Thermistor (-30 to 105°C), Pt100 (-50 to 300°C), Thermocouple J (0 to 600°C), K, T
• Output:
  Relay SPDT (16A resistive) + SPST-NA relay (3A / 250V)
• Accuracy: 0.1°C resolution (-19.9 to 199.9°C)
• Power Supply: 100–240 VAC/DC or 24 VDC/AC (optional range)
• Protection: IP65 frontal protection
• Communication: RS-485 Modbus RTU (optional)
• Operating Temperature: 0 to 40°C
• Dimensions: 75 × 33 × 75 mm
