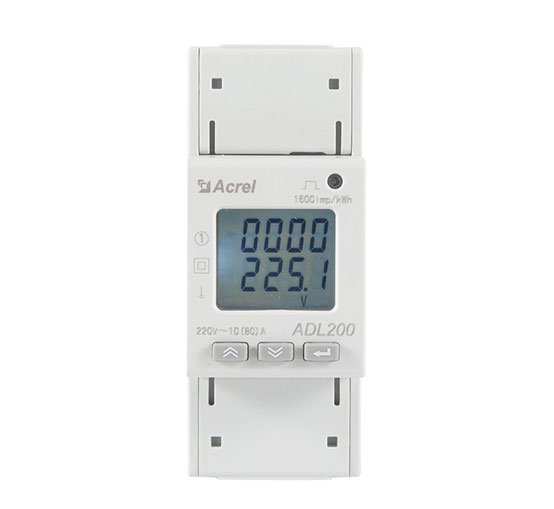

Single Phase DIN Rail Energy Meter ADL200

ADL200/C  Energy Meter is a compact single-phase DIN rail energy meter designed for accurate energy measurement and monitoring in residential, commercial, and industrial applications. It measures energy consumption as well as key electrical parameters including voltage, current, power, power factor, and frequency.

With RS485 Modbus-RTU communication, the ADL200 can be easily integrated into energy management, automation, and monitoring systems. Its compact DIN rail design ensures quick installation and reliable operation.

Features & Specifications

• Single-phase energy meter
• Direct connection: 10(80)A
• Rated voltage: 220V AC
• RS485 Modbus-RTU communication
• DIN rail mounting (35mm)
• LCD display
• Measures kWh, voltage, current, power, power factor, and frequency
• Active and reactive energy monitoring
• Multi-tariff support (up to 4 tariff rates)
• Pulse output for energy monitoring
• Accuracy Class 1 (kWh)
• Frequency range: 45–65Hz
• Compact size: 90 × 36 × 65 mm
• Operating temperature: -25°C to +55°C
• MID-certified versions available
